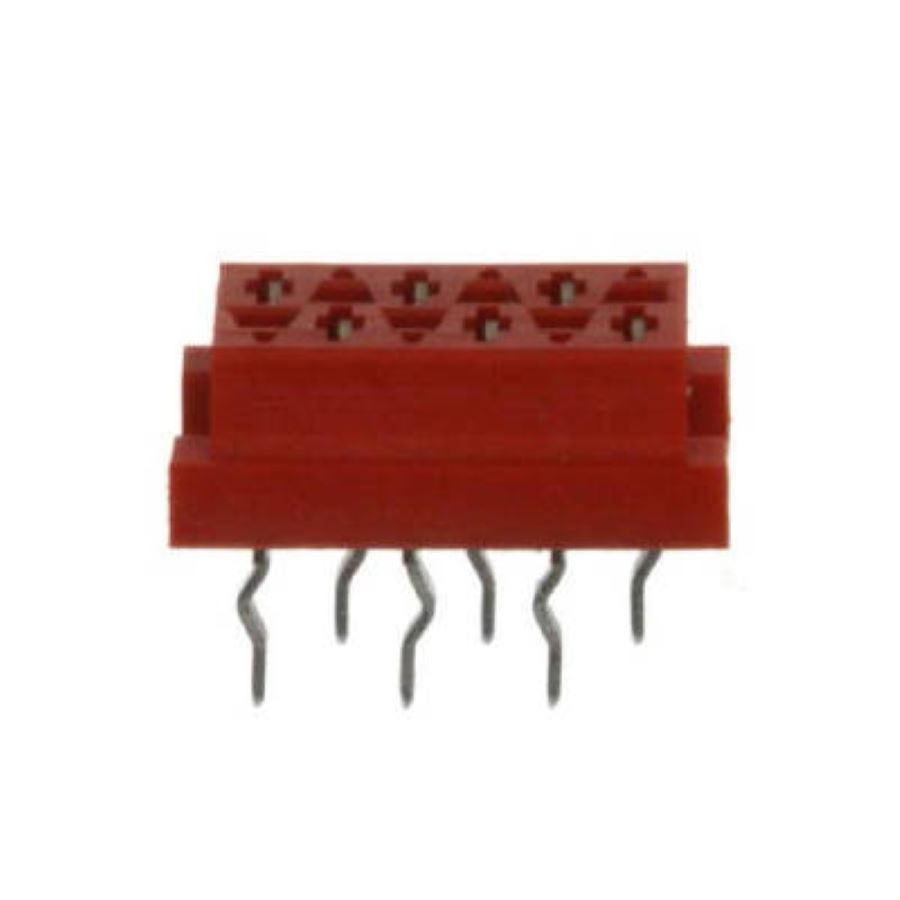

215079-6
Manufacturer:
TE Connectivity
Mfr.Part #:
215079-6
Datasheet:
Description:
Headers and Wire Housings Through Hole Connector, Pin, Receptacle Number of Positions:6 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 9.7028 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 4.064 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 5.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.0988 mm |
| Contact Material(Contact Finish) | Bronze, Nickel, Tin |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Connector, Pin, Receptacle |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Current Rating | 1.5 A |
| Housing Color | Red |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 5 nm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
Stock: 759
Distributors
pcbx
pcbxUnit Price$0.57024
Ext.Price$0.57024
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57024 | $0.57024 |
| 10 | $0.46397 | $4.63970 |
| 25 | $0.42930 | $10.73250 |
| 50 | $0.39722 | $19.86100 |
| 100 | $0.36753 | $36.75300 |
| 300 | $0.35445 | $106.33500 |
| 500 | $0.34183 | $170.91500 |
| 1000 | $0.32670 | $326.70000 |
